【Product Introduction】：The supports at both ends of the cone crusher main shaft, scientific design of crushing chamber, double insurance control of hydraulic and lubricating system.
【Applicable Materials】：Widely used in mining and sand aggregate industry, suitable for crushing various materials with medium hardness or above. Such as iron ore, non-ferrous metal ore, granite, limestone, Various ores and rocks such as quartzite, sandstone, river pebbles, etc.
【Production Capacity】：5～750t/h
【Product Application】：Widely used in mining and sand aggregate industry, suitable for crushing various materials with medium hardness or above. Such as iron ore, non-ferrous metal ore, granite, limestone, Various ores and rocks such as quartzite, sandstone, river pebbles, etc

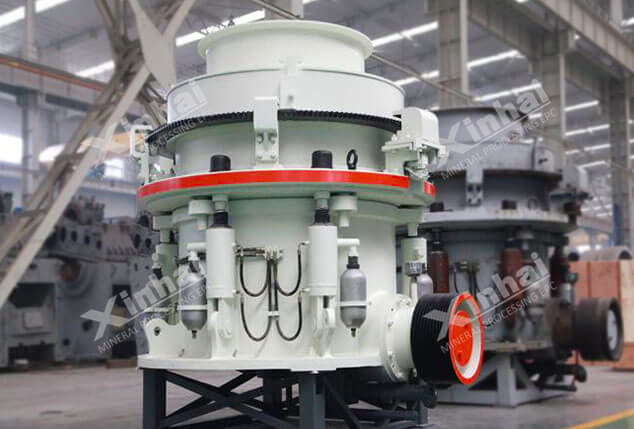

PYY series bottom single-cylinder hydraulic cone crusher is a cone crusher with international advanced technology.
It only has high reliability, and has high crushing efficiency, low operating cost and good product particle shape;
There are a variety of crushing cavity types to choose from. By choosing the appropriate crushing cavity type and eccentricity, the most
Meet the production requirements of customers to the greatest extent and achieve high output;
Hydraulic adjustment of the discharge port can be used to adjust the discharge port in a timely and convenient manner, so that the crusher is full of materials.
Work under the state, reduce the consumption of wearing parts and reduce operating costs;
Due to the use of advanced hydraulic technology, overload protection can be effectively achieved, the structure of the crusher is simplified, and the weight is reduced. All repairs and inspections are available
It can be done from the upper part of the crusher, making maintenance more convenient.
Hydraulic cone crusher consists of the frame, transmission, hollow eccentric shaft, bowl-shaped bearing, crushing cone, springs and hydraulic pressure station for adjusting discharge opening. During operation, the motor drives eccentric shaft shell to rotate through a horizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.
The main reason why crusher occurs blockage is material properties. Because the material contains much moisture, the ore material has a certain viscosity. When the ore material is sent to the crusher for crushing into small pieces, the ore material will stick together, and block between two pieces of jaw plates of crushing cavity, then causes material blockage phenomenon; Or the ore material is mixed with a large amount of sticky soil, so that the material is blocked in the crushing cavity.
| Model | Cavity | Inlet Dimension (mm) | Max. Feed Size (mm) | Min. Outlet Dimension (mm) | Max. Feed Dimension (mm) | Power (kW) | Weight (t) | ||||
| Stroke | Stroke | Stroke | Stroke | Stroke | Stroke | ||||||
| PYY100 | 16 | 22 | 16 | 22 | 90 | 6 | |||||
| A | 150 | 120 | 12 | 15 | 39 | 37 | |||||
| B | 130 | 105 | 10 | 11 | 33 | 31 | |||||
| C | 100 | 85 | 7 | 9 | 33 | 30 | |||||
| D | 40 | 32 | 5 | 6 | 31 | 29 | |||||
| PYY200 | 18 | 25 | 18 | 25 | 160 | 10.6 | |||||
| A | 220 | 180 | 18 | 22 | 35 | 30 | |||||
| B | 150 | 120 | 15 | 19 | 35 | 30 | |||||
| C | 80 | 60 | 9 | 12 | 35 | 30 | |||||
| D | 40 | 32 | 6 | 8 | 35 | 30 | |||||
| PYY300 | 25 | 32 | 25 | 32 | 250 | 18.5 | |||||
| A | 230 | 190 | 20 | 25 | 45 | 40 | |||||
| B | 150 | 125 | 17 | 20 | 45 | 40 | |||||
| C | 80 | 60 | 10 | 13 | 40 | 35 | |||||
| D | 40 | 32 | 6 | 8 | 40 | 35 | |||||
| PYY500 | 25 | 32 | 40 | 25 | 32 | 40 | 315 | 22.5 | |||
| A | 230 | 180 | 22 | 26 | 30 | 50 | 45 | 40 | |||
| B | 150 | 125 | 19 | 22 | 26 | 48 | 43 | 38 | |||
| C | 100 | 80 | 12 | 14 | 16 | 40 | 35 | 30 | |||
| D | 50 | 40 | 8 | 10 | 12 | 30 | 25 | 20 | |||
