【Product Introduction】:A gravity separation equipment of separating minerals with different weight by the inertial centrifugal force generated in the spiral motion of pulp.

【Applicable Materials】:It is suitable for processing fine-grained iron, tin, tungsten, tantalum, niobium, gold, coal, monazite, rutile, zircon, and the particle size is between 0.3-0.02mm. It is also suitable for other metal ores and non-metals that with sufficient specific gra

【Production Capacity】:0.15~16t/h

【Product Application】:The fiberglass spiral chute is a kind of new efficient gravity-processing equipment with domestic advanced level.It is suitable for processing fine-grained iron, tin, tungsten, tantalum, niobium, gold, coal, monazite, rutile, zircon, and the particle size

24-hour service hotline +8615903396981

ADVANTAGES

01  High efficiency, high recovery and accurate ore separation, no need of power;

02  Light weight, rust, wear and corrosion ressistance;

03  Low operation cost and long service life;

04  Strong adapability to the variation of feeding quantity, density, particle size and grade.

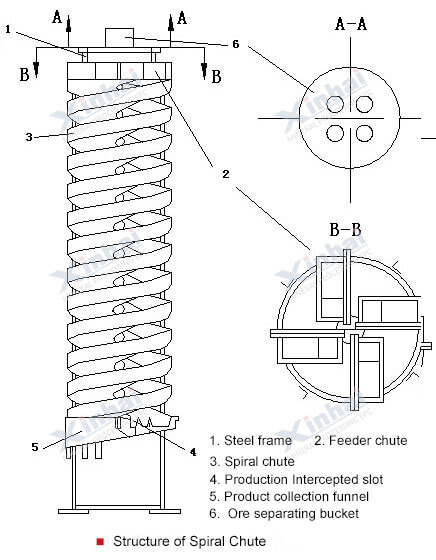

PRODUCT STRUCTURE

Spiral Chute principle

The uniform ore slurry is slowly fed to the spiral groove surface through the ore feeding trough installed at the head end of the spiral trough for sorting. The end of the spiral groove is equipped with a valve block-type product intercepting groove, and the sorted products are divided into three types according to the grade along the radial direction. The position of the regulating valve block is used to change the intercepting width of each product, and the product gathering bucket collects and derives the intercepted multi-head ore streams. The cross-section and the slope change of the curve are especially suitable for the selection of fine particle materials.

Spiral chute is suitable for the treatment of the 0.6-0.03mm lode and placer, but high mud content is bad for separation. At present, the spiral chute has been widely used in the treatment of iron ore, tungsten, tin ore, niobium tantalum ore, coastal and riverside placer, and gold ore.


Product Parameter

ModelBLL-2000BLL-1500BLL-1200BLL-900BLL-600BLL-400
Outside Diameter (mm)200015001200900600400
Screw Pitch (mm)1200900, 675900, 720, 540675, 540, 405450, 360, 270240, 180
Pitch Diameter Ratio0.60.48, 0.360.75, 0.6, 0.450.75, 0.6, 0.450.75, 0.6, 0.450.6, 0.45
Lateral Dip Angle (degree)
Max. Screw Numbers Per Set344422
Feed Size (mm)2.00~0.040.8 ~0.0370.3~0.030.3 ~0.030.2~0.020.2 ~0.02
Feed Density (%)30 ~5530 ~5525 ~5525 ~5525 ~5525 ~55
Capacity (t/h)7~106~84~62~30.8~1.20.15~0.2
Overall
 Dimension

Length    (mm)

2120160013601060700460

Width    (mm)

2120160013601060700460

Height    (mm)

560053005230400026001500
Weight (kg)900850/800700/650/600450/400/350120/100/8050
