【Product Introduction】：A mechanical vibrating feeding equipment with rough screening function
【Applicable Materials】：It is suitable for uniform feeding of bulk materials before crusher. It is especially suitable for ferrous or non-ferrous metal ore, building stones feeding before coarse crushing.
【Production Capacity】：96~560t/h
【Product Application】：It is suitable for uniform feeding of bulk materials before crusher. It is especially suitable for ferrous or non-ferrous metal ore, building stones feeding before coarse crushing.
01 Stable operation, reliable work, long service life, easy installation, convinient maintainance and easy automatic control;
02 Adopt double-shaft vibrator and liner vibratior to finish the feeding and screening process at the same time;
03 Continuously and evenly feeding for rough crusher to proceed the coarse screening;
04 Can install the variable-frequency and variable-speed motor to regulate frequency, change the production, and control the feed quantity easily without starting frequently;
05 It is widely used in mineral processing, building materials, silicate and chemical industry etc.

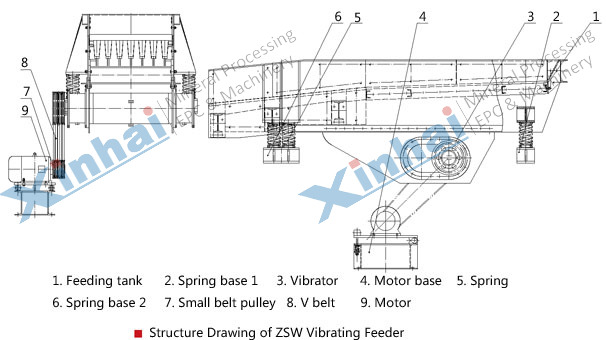

The vibration exciter is composed of two eccentric shafts with particular position. The large linear vibration force produced by motor and the rotation of two eccentric shafts vibrates the machine. The materials are sliding and thrown so that they could move on. When the materials pass the screen bars, the small ore falls through the clearance of screen bars.
| Model | Tank Dimensions (mm) | Max. Feed Size (mm) | Feed Capacity (t/h) | Rotating Speed of Eccentric Shaft (r/min) | Motor Power (kW) | Weight (kg) |
| ZSW380X95 | 3800X950 | 500 | 96~160 | 800 | 11 | 4082 |
| ZSW420X110 | 4200X1100 | 500 | 110~180 | 800 | 15 | 4149 |
| ZSW490X110 | 4900X1100 | 500 | 115~192 | 800 | 15 | 4263 |
| ZSW590X110 | 5900X1100 | 630 | 350~500 | 800 | 22 | 6130 |
| ZSW600X130 | 6000X1300 | 750 | 400~560 | 800 | 7800 |
