【Product Introduction】：A new efficient thickening equipment independently developed by Xinhai.
【Applicable Materials】：It can be widely used for the treatment of slime, waste water, and waste residue in metallurgy, mining, coal, chemical industry, building materials, and environmental protection departments.
【Production Capacity】：5-1400t/d
【Product Application】：It can be widely used for the treatment of slime, waste water, and waste residue in metallurgy, mining, coal, chemical industry, building materials, and environmental protection departments.
01 Out overflow weir increases the sedimentation area and not easy to block;
02 Oblique feeding instead of horizontal feeding solves the blockage problem;
03 A tranquil flow device reduces material flow rate, so that the overflow becomes more uniform with lower turbidity.

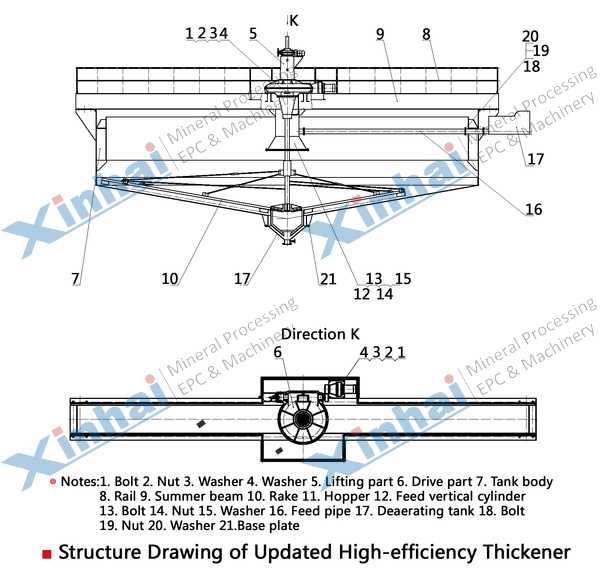

The vertical axis rotates driven by motor, and pulp by feeding device flows into the tank center feed mixing barrel.Solid material in the bottom of the tank by the scraper moves out of center; clarified overflow through the tranquil flow device flows out from the ring external overflow weir.
| Model | Tank Diameter (mm) | Tank Depth (mm) | Subsidence Area (m2) | Capacity (t/d) | Motor Model | Motor Power (kW) | Steel Tank Weight (kg) | Weight (kg) |
| NZSG-2.5 | 2500 | 1850 | 4.9 | 5 ~22.4 | Y90L-6 | 1.1 | 1000 | 2225 |
| NZSG-3A | 3000 | 1800 | 7 | 5 ~23.3 | Y100L-6 | 1.5 | 1664 | 3168 |
| NZSG-3 | 3600 | 1800 | 10.2 | 5 ~28.5 | Y100L-6 | 1.5 | 2097 | 3680 |
| NZSG-5 | 5000 | 2956 | 16 | 16 ~90 | Y90L-4 | 1.5 | 5160 | 8031 |
| NZSG-6 | 6000 | 2956 | 28.3 | 98 | Y90L-4 | 1.5 | 5769 | 9200 |
| NZSG-7 | 7000 | 3000 | 38.5 | 140 | Y112M-6 | 2.2 | 8800 | 13862 |
| NZSG-8 | 8000 | 3318 | 50.2 | 185 | Y132S-6 | 3 | 12966 | 19158 |
| NZSG-9 | 9000 | 3376 | 63 | 210 | Y132S-6 | 3 | 15418 | 21733 |
| NZSG-12 | 12000 | 3600 | 113 | 370 | Y132S-6 | 3 | 25589 | 34823 |
| NZSG-15 | 15000 | 3600 | 176 | 580 | Y132S-4 | 5.5 | 35800 | 54315 |
| NZSG-18 | 18000 | 4400 | 255 | 960 | YCT200-4B | 7.5 | 52485 | 73588 |
| NZSG-20 | 20000 | 4400 | 315 | 1400 | YCT200-4B | 7.5 | 59365 | 76312 |
Xinhai high-efficiency thickener is a thickener with a brand-new mechanical structure produced by the introduction of American technology.
A self-developed high-efficiency deep cone thickener, the underflow concentration can reach up to 70%.
A new efficient thickening equipment independently developed by Xinhai.
Peripheral transmission thickener has two kinds, peripheral roller transmission and peripheral gear transmission
A slurry gravity thickener designed with tilted plate in sedimentation area
A thickener with center hydraulic driving and hydraulic automatic rake lifting
